We have wide range of products can meet each company's individual Printing needs. We won high reputation from our customers for the Doctor blades are providing consistent quality and durability.
Lamella edge
Lamella edge: this kind of doctor blade is most widely used. The unique shape of the lamella keeps a constant contact with the cylinder which minimizes print problems effectively and ensures a high printing quality. No resharpening is required and the lamella ends in a smooth taper reduces vibrations and fatigue.
Radius edge
Radius edge: this kind of doctor blade is designed for flexographic printing. The radius edge prolongs the using life of doctor blade as well as reduces the abrasion of cylinder. It is suitable for coating and polishing.
Lamella blade is most widely used. The unique shape of the lamella keeps a constant with the cylinder which minimize print problems effectively and ensures a high printing quality. No reshapening is required and the lamella ends in a smooth taper reduces vibratuibs and fatigue.
Lamella edge
Lamella edge: this kind of doctor blade is most widely used. The unique shape of the lamella keeps a constant contact with the cylinder which minimizes print problems effectively and ensures a high printing quality. No resharpening is required and the lamella ends in a smooth taper reduces vibrations and fatigue.
Radius edge
Radius edge: this kind of doctor blade is designed for flexographic printing. The radius edge prolongs the using life of doctor blade as well as reduces the abrasion of cylinder. It is suitable for coating and polishing.Chemical Composition:
C: 1.00% Si:0.20% Cr:0.36% Mn:0.45%
Blade Specification:
Width : 25-60 mm
Thiickness : 0.15 & 20 mm
Lamell : 70, 80, 100 micron
Packing : 100mbs, 50 mbs
Other Sizes are available when required.
Support Blade (Back Up Blade)
Available as per your Requirement
Thiickness : 0.15 & 20 mm
Lamell : 70, 80, 100 micron
Packing : 100mbs, 50 mbs
Other Sizes are available when required.
Support Blade (Back Up Blade)
Available as per your Requirement

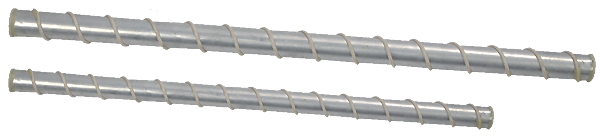

Specification:
• Avoid motting, Manual stirring of Ink
• Shed Variation, Instant & Uniform
• Mixing of Solvant During printing
Dia: 37 - 50 mm
Length:250 - 3000 mm
• Avoid motting, Manual stirring of Ink
• Shed Variation, Instant & Uniform
• Mixing of Solvant During printing

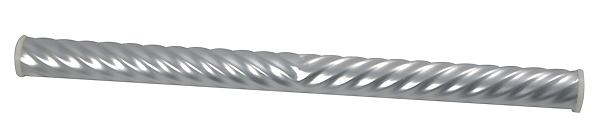

Specification:
• No Fiber Generated
• No Ink Clustered
• No Spiraled Line
• Long Life & Easy to renewed
Dia: 50 mm
Length:500 - 1500 mm
• No Fiber Generated
• No Ink Clustered
• No Spiraled Line
• Long Life & Easy to renewed
Applications
Working Principle

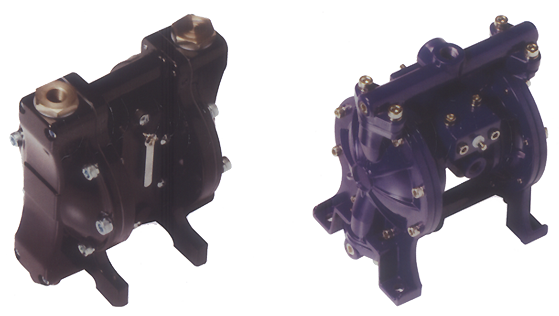

pneumatic SK/SS Pumps are of the most versatile pumps on the market. They can be used in a variety of installation in numerous applications. Thanks to the simple operating principle. with a compact and reliable design, diaphragm pumps meet the demands of printing, painting,water treatment & chemical industries. Today lots of unique- designed pneumatic pumps are sufficiently applied to rotogravure/ flexo printing presses and coating/ laminating machine with or without chamber doctor blade systems.
Working Principle
Air-operated double diaphragm pumps utilize a pressure different in the air chambers to alternately create sucation and positive fluid pressure in the fluid chamber. Ball checks is insure a positive flow of fluid cycling will begin as air pressure is applied and it will continue to pumps and keep up with the demand. it will build and maintain line pressure and will stop cycling once maximum line pressure is reached. (dispensing device closed) and will resume pumping as needed.
We Offer Antistatic Brushes With Carbon - Fibre OR Stainless - Steel - Yarn
• Effective Protection removal using fibre Carbon Bristle
• Brushes installed on both sides, immediately downstream
• Installed direct on application operator friendly, Zero maintenance
• Effective Protection removal using fibre Carbon Bristle
• Brushes installed on both sides, immediately downstream
• Installed direct on application operator friendly, Zero maintenance

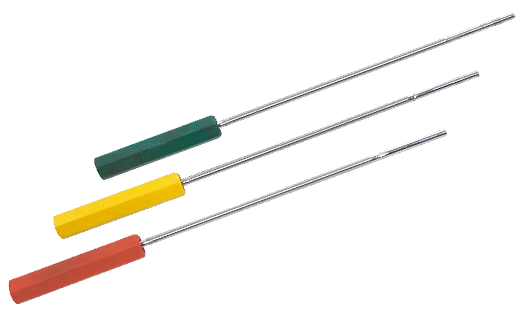

Coating with Bar Coater 11 cms & 24 cms. Suitable Draw Downpad. Stainless steel Rods & Wires Color Handle for easy Identificaion.

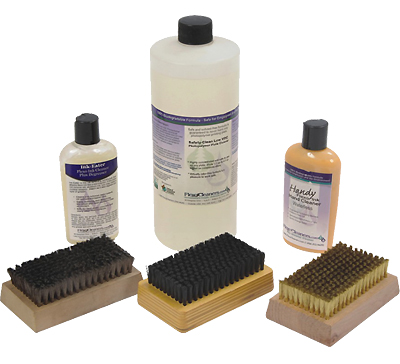

Designed for use on chrome Cylinder/ Anilox rolls. Metering Rolls and delicate machine parts for use with periodic quick cleaning. We offer BRASS and STAINLESS STEEL brushes. We also Offer Fibre Brush.
Brush Measurements :
7/8", Height 2 1/2 " Width: 3/4" trim, 117 bristle count, 0045" Bristle dia.
Brush Measurements :
7/8", Height 2 1/2 " Width: 3/4" trim, 117 bristle count, 0045" Bristle dia.
